The weBoost Drive Reach Overland (472061) is a powerful 5G-ready in-vehicle signal booster system, specially designed for overland and off-road vehicles.

The Drive Reach offers up to 50dB of gain and boosts 4G voice and data on all US cell carriers. It also supports the 1900 MHz Band 25/2 for 5G.

Increased Uplink and Downlink Power

The Drive Reach offers increased uplink and downlink power across all carrier frequency bands. This increased power means that users get signal up to 2X farther away from cell towers, with over 2X the signal strength.

Coverage Area

The weBoost Drive Reach Overland will cover a normal vehicle in areas of medium to weak outside signal. Total coverage is dependent upon outside signal strength. When you are driving through an area with very weak outside signal, you may only get coverage up to a few feet from the internal antenna.

Outside Antenna

The Overand Antenna (311248) is a powerful omnidirectional antenna that offers up to 2.4 - 4.3 dBi of gain. With its 13-inch mast extension, the antenna can be extended from 7.5 inches to 20.5 inches for improved range.

The Overand Antenna meets U.S. Military 810H, IP66, and NEMA standards for durability, and is off-road rated to MIL-STD 810H for shock and vibration. This antenna can be folded down for when a vehicle is stored inside a garage or whenever needed.

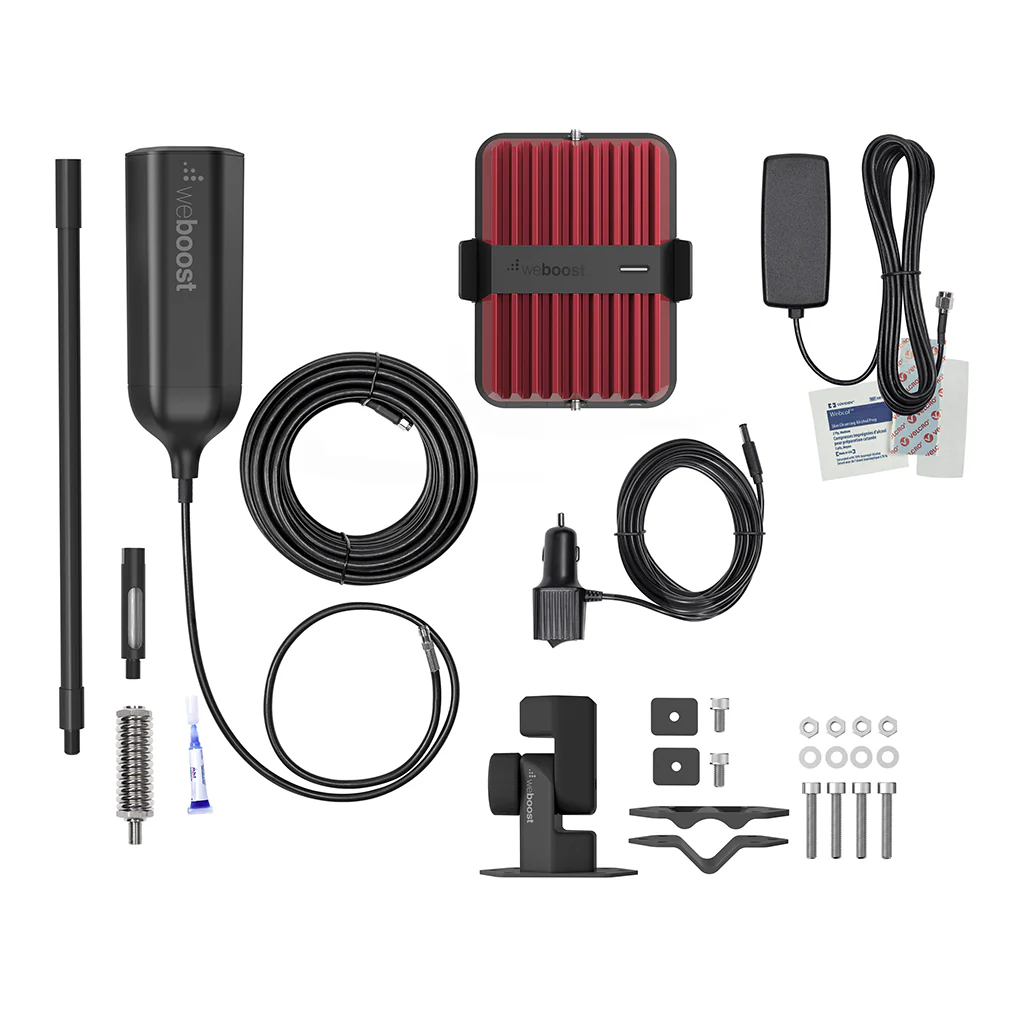

Kit Contents

• Drive Reach Amplifier
• Overland Antenna (311248)
• Slim Low-Profile Antenna (314401)
• Overland Mounting Bracket & Hardware (901168)
• 12V/1.8A DC/DC CLA Power Supply (850029)
• 14 ft LMR-195 Cable (951114)
• 13 inch Mast Extension
• Coax Cable Side-Exit Adapter
• Antenna Spring
• Thread Lock Packets
